UVSHOW

UVSHOW plots the uv-data. By default amplitudes vs. uv-radii are presented, for all visibilities and spectral channels. The UVSHOW parameters widget (see Fig. [*]) permit to select the visibility's characteristic (amplitude, real part, weight, etc.) to plot. By default the different tracks are plotted with different colors. Plotting a model fitted by UVFIT is possible by clicking in the corresponding option.



\begin{table}{\it\small
\par
\vspace{0cm}
\par
\noindent
At the prompt:\\
Proce...
...es/no} \\
{\tt let uvshow$\%$track yes/no} \\
\par
\end{minipage}}
\end{table}

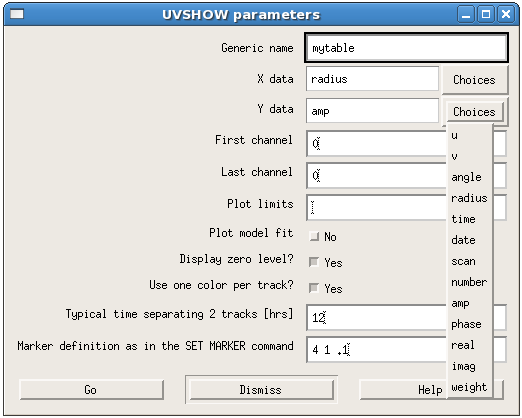

Figure: UVSHOW parameters, to plot the UV-data.

Image pdbi-cookbook-21
