sic_xgag.c File Reference

This library interfaces with the standalone GUIs by formatting, writing and reading structures describing widgets style and pairs variable/value. More...

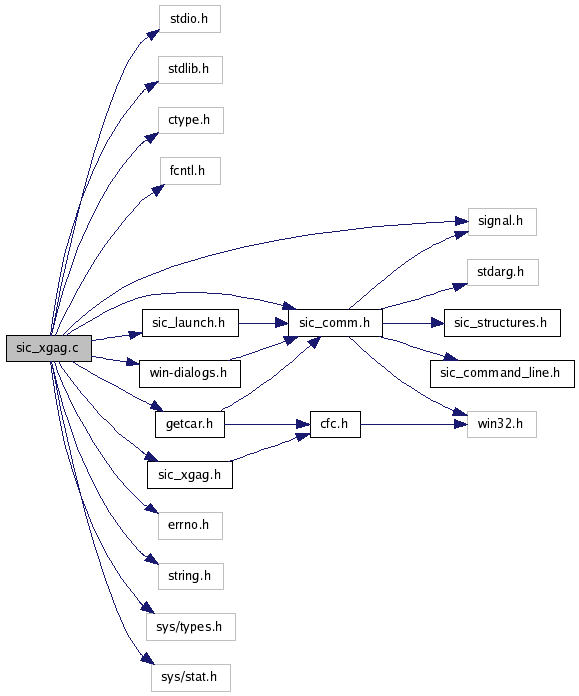

Include dependency graph for sic_xgag.c:

Go to the source code of this file.

Defines
#define	SIGCLD   SIGCHLD
Functions
void CFC_API	xgag_separator (int *win_id)
global_struct *	set_generic (int type, int win_id, CFC_FString variable, CFC_FString label)
void CFC_API	xgag_logic (CFC_FString variable, CFC_FString txt, int *flag, int *win_id)
void CFC_API	xgag_file (CFC_FString variable, CFC_FString txt, char *c, int *length, CFC_FString filter, int *win_id)
void CFC_API	xgag_choice (CFC_FString variable, CFC_FString txt, char *ch, int *length, xgag_choicelst *liste, int *nch, int *ind, int *win_id)
void CFC_API	xgag_slider (CFC_FString variable, CFC_FString txt, float *f, float *min, float *max, int *win_id)
void CFC_API	xgag_ch (CFC_FString variable, CFC_FString txt, char *c, int *length, int *win_id, int *editable)
void CFC_API	xgag_show (char *c, int *length, int *win_id)
void CFC_API	xgag_button (CFC_FString title, CFC_FString command, CFC_FString label, int *length, CFC_FString helptxt, CFC_FString moretxt)
void CFC_API	end_dialog (void)
void CFC_API	xgag_open (CFC_FString txt, CFC_FString name, int *code)
void CFC_API	xgag_update (CFC_FString variable, CFC_FzString update)
void CFC_API	get_user_input (CFC_FzString return_command, int *err_code)
void CFC_API	xgag_dialog (CFC_FzString return_command, int *err_code)
Variables
char *	dialoghelpname [MAX_NB_DIALOG]

---

Detailed Description

This library interfaces with the standalone GUIs by formatting, writing and reading structures describing widgets style and pairs variable/value.

On the FORTRAN SIC side, there exist only a table of pointers to fixed-length strings containing the initial and returned value of a variable. It is also the role of this library to map C null-terminated strings used by the GUIs to fixed-lengthstrings handy in FORTRAN.

Definition in file sic_xgag.c.

---

Define Documentation

#define SIGCLD   SIGCHLD

Definition at line 38 of file sic_xgag.c.

---

Function Documentation

void CFC_API end_dialog

(

void

)

Definition at line 192 of file sic_xgag.c.

References NSTRUCT, and on_end_dialog().

Here is the call graph for this function:

void CFC_API get_user_input	(	CFC_FzString	return_command,
		int *	err_code
	)

Definition at line 267 of file sic_xgag.c.

References BROWSER, CFC_fz2c_string(), global_struct::chain, CHAIN, global_struct::choice, CHOICE, global_struct::file, logic_struct::logic, global_struct::logic, LOGIC, nb_widgets, NSTRUCT, sic_close_widget_board(), sic_get_widget_def(), sic_get_widget_returned_code(), sic_get_widget_returned_command(), sic_open_widget_board(), global_struct::slider, SLIDER, file_struct::userchain, chain_struct::userchain, choice_struct::userchoice, logic_struct::userlogic, slider_struct::uservalue, and slider_struct::value.

Here is the call graph for this function:

global_struct* set_generic	(	int	type,
		int	win_id,
		CFC_FString	variable,
		CFC_FString	label
	)

Definition at line 82 of file sic_xgag.c.

References global_struct::generic, generic_struct::label, LABELLENGTH, SICVLN, generic_struct::type, generic_struct::variable, and generic_struct::window_id.

void CFC_API xgag_button	(	CFC_FString	title,
		CFC_FString	command,
		CFC_FString	label,
		int *	length,
		CFC_FString	helptxt,
		CFC_FString	moretxt
	)

Definition at line 165 of file sic_xgag.c.

References BUTTON, button_struct::command, COMMANDLENGTH, button_struct::helptxt, HLPFILELNGTH, button_struct::label, LABELLENGTH, button_struct::moretxt, button_struct::showlength, button_struct::title, TITLELENGTH, button_struct::type, and button_struct::window_id.

void CFC_API xgag_ch	(	CFC_FString	variable,
		CFC_FString	txt,
		char *	c,
		int *	length,
		int *	win_id,
		int *	editable
	)

Definition at line 146 of file sic_xgag.c.

References chain_struct::chain, global_struct::chain, CHAIN, CHAINLENGTH, chain_struct::editable, chain_struct::length, set_generic(), and chain_struct::userchain.

Here is the call graph for this function:

void CFC_API xgag_choice	(	CFC_FString	variable,
		CFC_FString	txt,
		char *	ch,
		int *	length,
		xgag_choicelst *	liste,
		int *	nch,
		int *	ind,
		int *	win_id
	)

Definition at line 121 of file sic_xgag.c.

References CHAINLENGTH, choice_struct::choice, global_struct::choice, CHOICE, choice_struct::choices, xgag_choicelst::chs, choice_struct::length, choice_struct::mode, choice_struct::nchoices, set_generic(), choice_struct::userchoice, and X_CHOLEN.

Here is the call graph for this function:

void CFC_API xgag_dialog	(	CFC_FzString	return_command,
		int *	err_code
	)

Definition at line 329 of file sic_xgag.c.

References CFC_fz2c_string(), global_struct::generic, launch_xinput(), sic_add_widget_def(), sic_close_widget_board(), sic_create_widget_board(), sic_set_widget_global_infos(), sic_wait_widget_created(), and generic_struct::type.

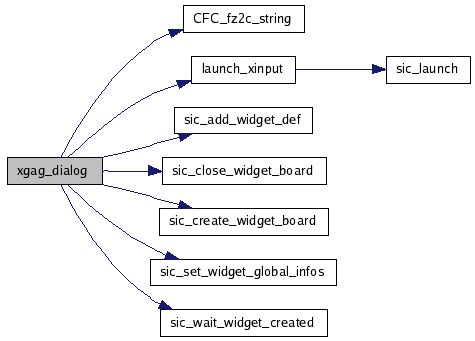

Here is the call graph for this function:

void CFC_API xgag_file	(	CFC_FString	variable,
		CFC_FString	txt,
		char *	c,
		int *	length,
		CFC_FString	filter,
		int *	win_id
	)

Definition at line 110 of file sic_xgag.c.

References BROWSER, file_struct::chain, CHAINLENGTH, global_struct::file, file_struct::filter, FILTERLENGTH, file_struct::length, set_generic(), and file_struct::userchain.

Here is the call graph for this function:

void CFC_API xgag_logic	(	CFC_FString	variable,
		CFC_FString	txt,
		int *	flag,
		int *	win_id
	)

Definition at line 102 of file sic_xgag.c.

References logic_struct::logic, global_struct::logic, LOGIC, set_generic(), and logic_struct::userlogic.

Here is the call graph for this function:

void CFC_API xgag_open	(	CFC_FString	txt,
		CFC_FString	name,
		int *	code
	)

Definition at line 208 of file sic_xgag.c.

References dialoghelpname, end_dialog, HLPFILELNGTH, and TITLELENGTH.

void CFC_API xgag_separator

(

int *

win_id

)

Definition at line 74 of file sic_xgag.c.

References SEPARATOR, generic_struct::type, and generic_struct::window_id.

void CFC_API xgag_show	(	char *	c,
		int *	length,
		int *	win_id
	)

Definition at line 156 of file sic_xgag.c.

References SHOW, show_struct::text, TEXTLENGTH, show_struct::type, and show_struct::window_id.

void CFC_API xgag_slider	(	CFC_FString	variable,
		CFC_FString	txt,
		float *	f,
		float *	min,
		float *	max,
		int *	win_id
	)

Definition at line 136 of file sic_xgag.c.

References slider_struct::min, set_generic(), global_struct::slider, SLIDER, slider_struct::uservalue, slider_struct::value, and slider_struct::width.

Here is the call graph for this function:

void CFC_API xgag_update	(	CFC_FString	variable,
		CFC_FzString	update
	)

Definition at line 219 of file sic_xgag.c.

References BROWSER, CFC_fz2c_string(), CHAIN, CHAINLENGTH, CHOICE, global_struct::logic, LOGIC, NSTRUCT, sic_fire_modified_variable_event(), SIC_TASK_NULL, SICVLN, global_struct::slider, SLIDER, logic_struct::userlogic, and slider_struct::uservalue.

Here is the call graph for this function:

---

Variable Documentation

char* dialoghelpname[MAX_NB_DIALOG]

Definition at line 46 of file win-dialogs.c.

---
